Waveshare Binocular Camera Module, Dual IMX219 8 Megapixels, for AI Vision Applications, Like Depth and Stereo Vision, Supports Jetson Nano Developer Kit B01/RPi CM3/CM3+

Marca: Waveshare
Dispositivos compatibles: Ordenador personal
Tecnología de memoria RAM: LPDDR
Procesadores compatibles: NVIDIA Jetson Nano, NVIDIA Jetson Xavier NX, Broadcom BCM2711
Tipo de chipset: Intel Z170
Nombre del modelo: Waveshare Binocular Camera Module
Tipo de conector principal de energía: 24 pines
Ranuras de memoria disponibles: 2
Bus de sistema estándar compatible: PCIe
Total de puertos HDMI: 1

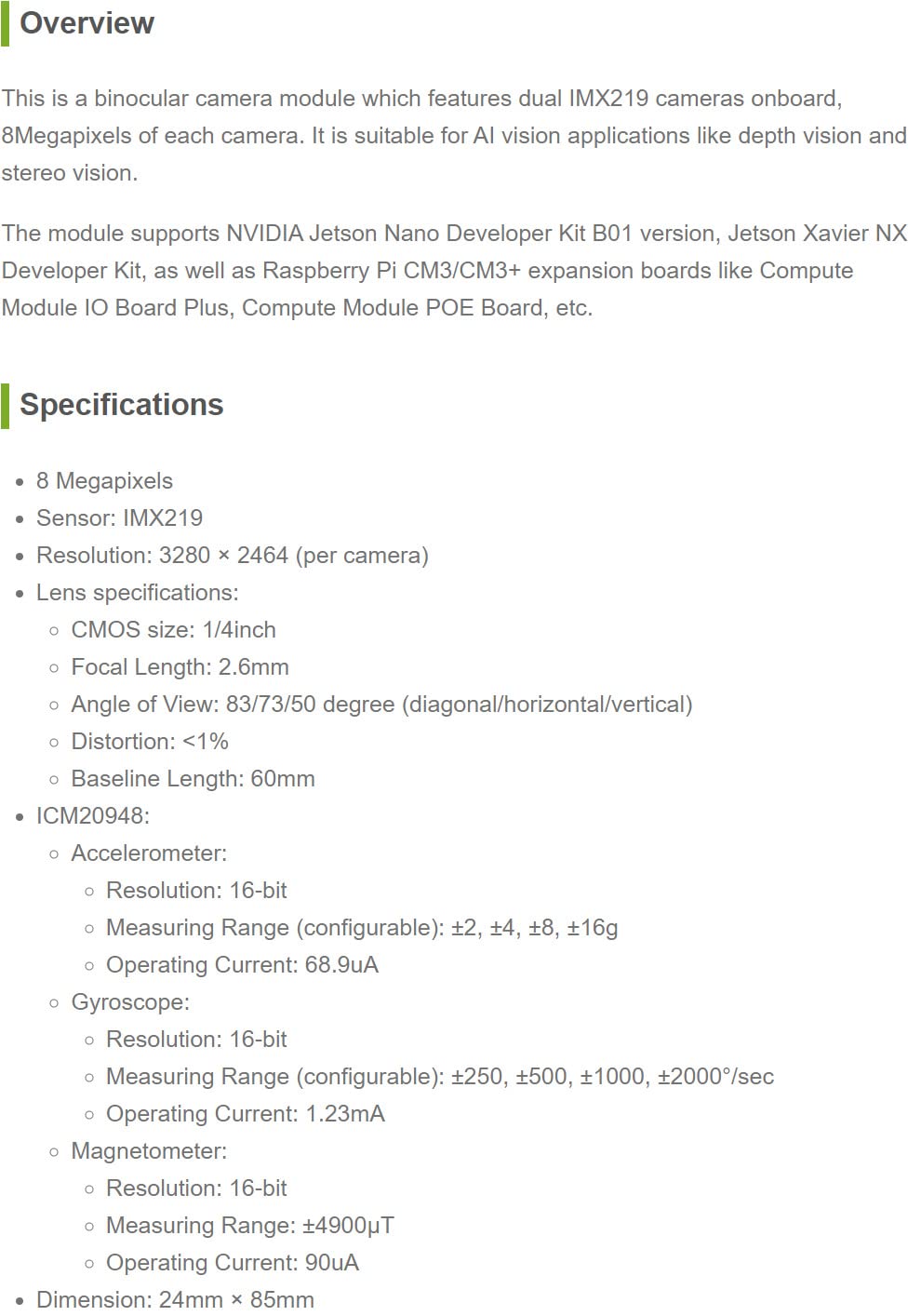

- This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.
- The module supports Jetson Nano Developer Kit B01 version, Jetson Xavier NX Developer Kit, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.

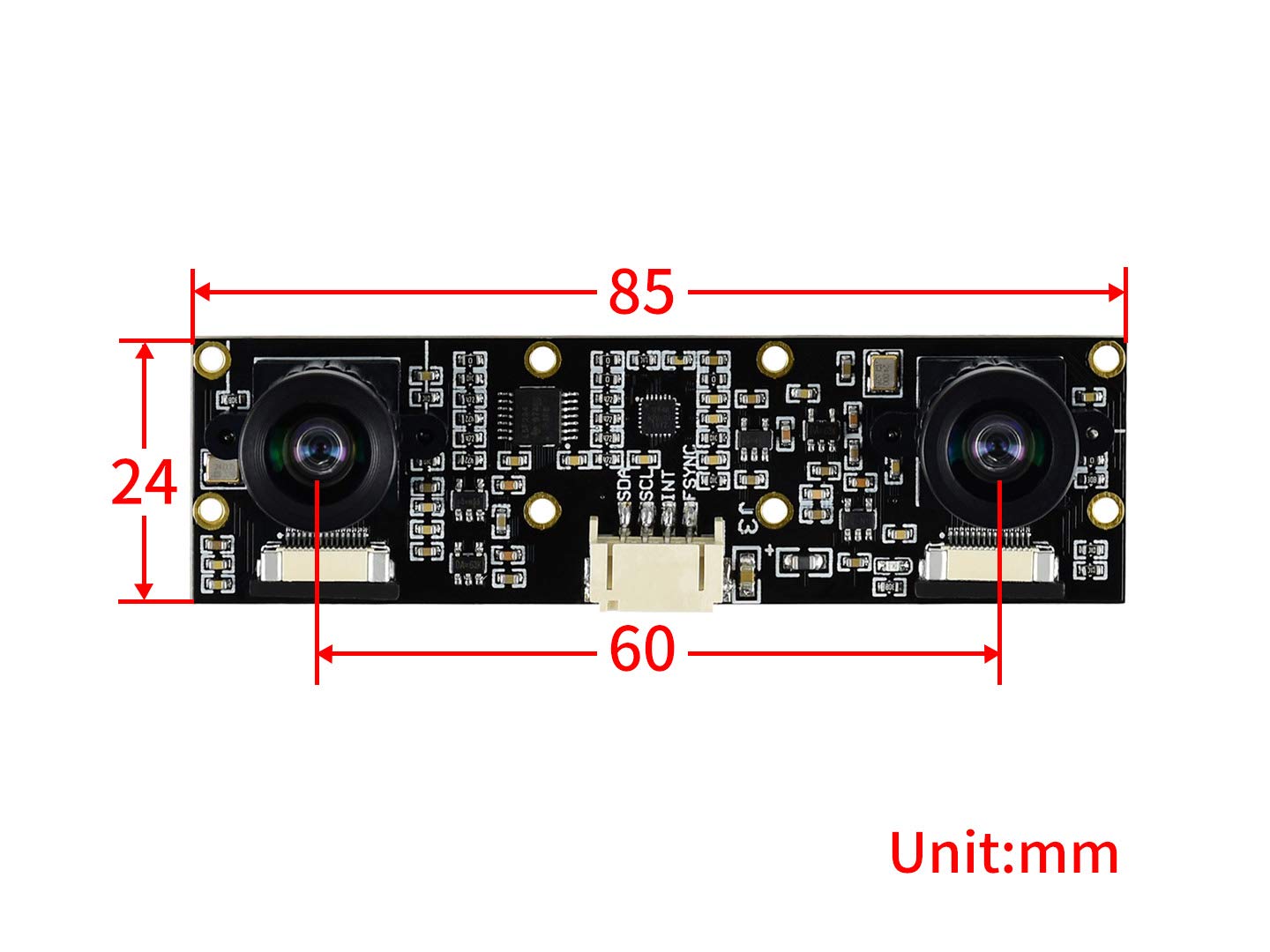

- Resolution: 3280x2464 (per camera). Dimension: 24mmx85mm.
- CMOS size: 1/4inch. Focal Length: 2.6mm. Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
- Distortion: <1%. Baseline Length: 60mm.
